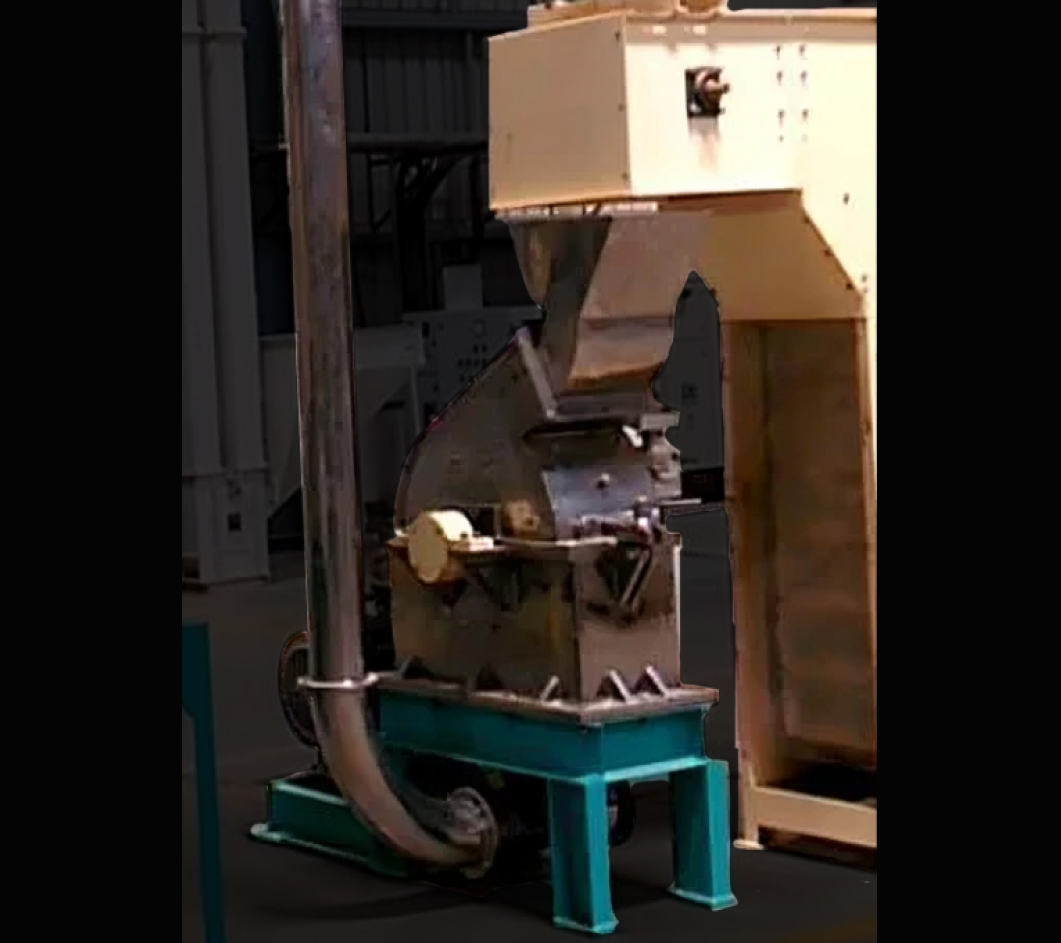

Industrial Hammer Mill
Industrial Hammer Mill :
Hammer mill A rotor is attached with swinging or stationary hammer heads, which rotate at a high speed to force the ingredients against a circular screen or a solid serrated section, resulting in crushing of material inside a hardened casing (Figure 2.1). The crushed materials are further crushed until they reach the size of the aperture of a hard metal sieve at the outlet. These mills can handle both brittle and fibrous dry materials. Hammer mills can grind ingredients up to a maximum size of 75 mm, while larger pieces above 75 mm require a pre-crusher for initial size reduction.
Two types of arrangement exist in the hammer mill; the common one is a horizontal drive shaft, which suspends vertical hammers to crush any friable and fibrous dry materials containing less fat. The other one is the vertical hammer mill where the drive shaft is positioned vertically while screens and hammers are positioned horizontally. Materials successfully reach the screen hole size and are carried by the gravity force outside the mill and then by air or conveyor to storage. Bigger particles, which still escape the size reduction process, are allowed to drop through the mill and may be recycled for size reduction. This facilitates the separation of foreign materials, such as metal and stones, which can cause screen damage.
- High-Capacity Grinding: Equipped with a powerful motor and multiple hammers, the hammer mill efficiently grinds a variety of materials, including grains, spices, minerals, plastics, and wood, achieving high throughput rates.
- Adjustable Particle Size: Features a customizable screen and interchangeable hammers, allowing for precise control over final particle size, from coarse to fine grinding.
- Heavy-Duty Construction: Built with high-quality materials such as stainless steel or carbon steel, the hammer mill is designed to withstand rigorous industrial use, providing long-lasting durability and reliability.
- Versatile Applications: Capable of processing both soft and hard materials, the hammer mill is ideal for size reduction, pulverizing, and grinding in various industries, including food and feed production, pharmaceuticals, chemicals, and recycling.
- Easy Maintenance: Designed with easy access to internal components, the hammer mill allows for quick and straightforward cleaning and maintenance, minimizing downtime and ensuring continuous operation.
- Efficient Energy Use: Engineered to optimize energy consumption, the hammer mill delivers high-performance grinding while maintaining low operational costs.
- Safety Features: Equipped with safety guards, emergency stop functions, and overload protection to ensure safe operation and protect both operators and equipment.
- Customizable Configurations: Available in various sizes and configurations to meet specific operational needs, with options for different hammer types, screen sizes, and rotor designs.
- Low Noise Operation: Designed for quiet operation, reducing noise pollution in the workplace and providing a more comfortable environment for operators.
- Advanced Control Options: Offers manual, remote, or automated control systems, including The Industrial Hammer Mill is an essential tool for any operation requiring efficient and reliable size reductionWith its durable construction, customizable options, and advanced safety features, this machine provides a powerful solution to enhance productivity and maintain consistent quality across a wide range of industrial applications.
Technical Specifications :
- Material of Construction: Stainless steel, carbon steel, or wear-resistant steel
- Hammer Type: Swinging or fixed hammers; options include hardened steel or tungsten carbide
- Rotor Speed: Customizable; typically ranges from 1,500 to 3,600 RPM
- Motor Power: Ranges from 5 kW to 300 kW, depending on the application and model
- Capacity: Up to 50 tons per hour, depending on material properties and mill configuration
- Screen Size: Interchangeable screens with openings ranging from 0.2 mm to 50 mm
- Feed Size: Up to 150 mm, depending on material and hammer mill size
- Discharge Size: Adjustable; typically ranges from 0.5 mm to 25 mm
- Feed Type: Gravity-fed or screw conveyor-fed, depending on application requirements
- Power Supply: 220V/380V, 50Hz/60Hz
- Noise Level: Below 85 dB with noise reduction options available
- Operating Temperature Range: -20°C to 80°C (materials dependent)
- Safety Features: Safety guards, emergency stop buttons, overload protection, and interlock systems
- Maintenance: Easy-access design for quick maintenance and screen/hammer changes
- Dimensions: Customizable; varies based on model and application
- Weight: Typically ranges from 500 kg to 5,000 kg, depending on size and configuration
- Control Options: Manual, remote, or PLC-controlled for automated operation
- Optional Accessories: Feed hoppers, dust collectors, magnets for metal detection, soundproofing enclosures
- Compliance: Meets CE, OSHA, and ATEX standards
